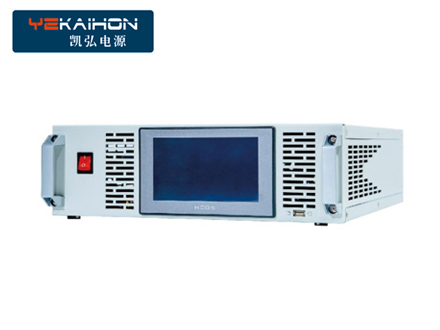

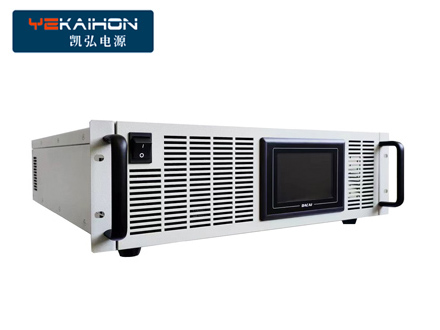

KH-DKG/SKG series DC high-voltage power supply in addition to the characteristics of KH-DK/SK power supply, but also has the characteristics of high output voltage, we back according to customer requirements to produce ultra-high voltage (up to 100000V) power supply, eye power up to 60kW, voltage and current can be continuously adjustable, long-term full load continuous stable work.
The DC high voltage power supply can be used in the defense of high edge test, gas discharge, high voltage tube test aging, also can be used in other electronic components test aging. Since the output voltage of the power supply is high, in the case of no special requirements, the output negative terminal is generally connected with the chassis, namely the ground wire, to ensure the personal safety of users.
Performance characteristics of DC high voltage power supply
● Specification range: output voltage 800-100kV, output current 0-50 output power 0-60kW optional:
Constant voltage constant current: voltage value from 0-100% rating continuously adjustable current from zero to rating continuously adjustable, constant voltage constant current automatic conversion:
● Overvoltage protection: the voltage protection value 0-110% rating is continuously adjustable, the power output voltage exceeds the voltage protection value will trip protection:
Short circuit protection: rated voltage below 10KV allows short circuit and sound alarm, short circuit trip protection above 10KV:
● Overload protection: power supply or load failure, output current exceeds 15 times the rated value, power trip protection;
● Short circuit alarm: when the output short circuit, the power supply sound and light alarm (optional);
● Automatic discharge: power off discharge for capacitive load (optional);
● Output display: voltage, current and LED digital tube display (standard):LCD LCD screen display (optional):
● Pulse work: can be equipped with time controller constitute pulse power supply (optional):
● Intelligent: can be connected with the computer, composed of computer monitoring intelligent power supply (optional);
● Analog signal interface: Users can use 0~5V or 4~20mA signal to control the output voltage and current of the power supply (optional).
Main uses of DC high voltage power supply
1) Laboratories of universities and scientific research institutes, testing and debugging of electrical products; 4) Klystron, magnetron, power supply;
2) Electronic product detection, aging, gas discharge: 5) All kinds of high voltage test equipment supporting power supply:
3) Used for routine test of electronic components; 6) The whole machine is sophisticated and all other occasions requiring the use of high voltage output.
